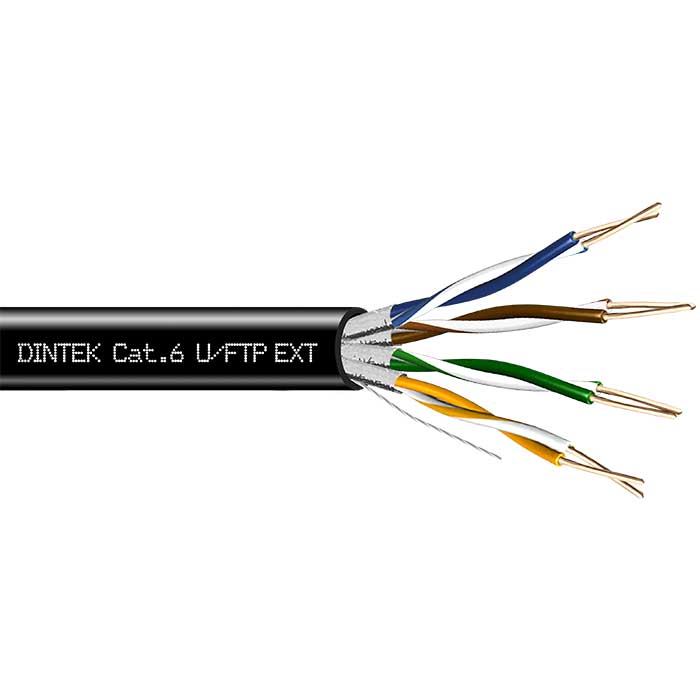

Dintek Cat.6 U/FTP PowerMAX Outdoor Solid, 23AWG Cable, PE Jacket,305M,Black
Dintek Cat.6 U/FTP PowerMAX Category 6 4 Pair Exterior (Industrial) U/FTP cable, has been designed to support high speed Gigabit data transmission systems to a distance not exceeding 100mtrs.
For Outdoor or Conduit Duct Applications, the Dintek Cat.6 U/FTP cable is part of the PowerMAX System range of products, that have been designed based on the PowerSum principle of crosstalk measurement and testing.
When combined as an end to end solution, the PowerMAX system, when installed by a certified installer can be warrantied for 25yrs.
Application of Dintek Cat.6 U/FTP
- For Outdoor or Conduit Duct Applications
- Voice; T1; ISDN
- 10BASE-T (IEEE 802.3)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
Standards Conformance
- ANSI/TIA-568-C.2 Cat.6
- 2nd Edition ISO/IEC 11801 Class E
- CENELEC EN 50173-1:2007
- 2nd Edition IEC 61156-5,CENELEC EN 50288-5-1
- Products always comply with RoHS and REACH Directives.
Technical Specifications| Construction | |
|---|---|
| Conductor | |
| Material | Solid annealed copper wire |
| Wire Size | 23AWG |
| Insulation | |
| Material | Foam-Skin PE |
| Thickness | Nominal: 0.414 mm |
| Diameter | 1.387mm |
| Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
| Unaged Elongation(%) | Min. 100% |
| Unaged Tensile Strength | Min. 0.816 Kgf/mm² |
| Screen | Aluminum-Mylar tape |
| Jacket | |
| Material | LDPE |
| Thickness | Nominal: 0.5 mm |
| Diameter | Nominal: 7.2 mm |
| Color | Black |
| Drain Wire | Tinned copper |
| Physical Ranges | |
| Insulation | |
| Min. Tension Strength | |
| Before Aging | Min. 0.816 Kgf/mm² |
| Min Elongation(%) | |
| Before Aging | Min. 100% |
| Jacket | |
| Min. Tension Strength | |
| Before Aging | Min. 0.989 Kgf/mm² |
| After Aging | Min. tensile strength retention:75% – Aging at 100℃ for 168Hrs |
| Min Elongation(%) | |
| Before Aging | Min.350% |
| After Aging | Min. elongation retention:75% – Aging at 100℃ for 168Hrs |
| Dielectric Strength | 1200 V dc or 850 V ac / 2 seconds |
| Min. Bending Radius | 26mm |
| Max. Pulling Tension | 25lbs |
| Installation Temperature | 0°C to +50°C |
| Operating Temperature | -20°C to +70°C |
| Electrical | |
| Conductor Resistance | Max. 9.38 Ω/100m at 20℃ |
| DC Resistence Unbalance | Max. 2% |
| Pair-to-Ground Capacitance Unbalance | Max. 160 pF/100m |
| Dielectric Strength of Insulation | DC 500V / 1min. or AC 350V / 1min |
| Insulation Resistance Test | Min. 5000 MΩ/m |
| Mutual Capacitance | Max. 5600 pF/100m |
| Impedance 1~100MHz | 100Ω ± 15% |
| Impedance 100-250MHz | 100Ω ± 22% |
