Remote Cable Tester

REMOTE CABLE TESTER The most valuable solutions for MIS

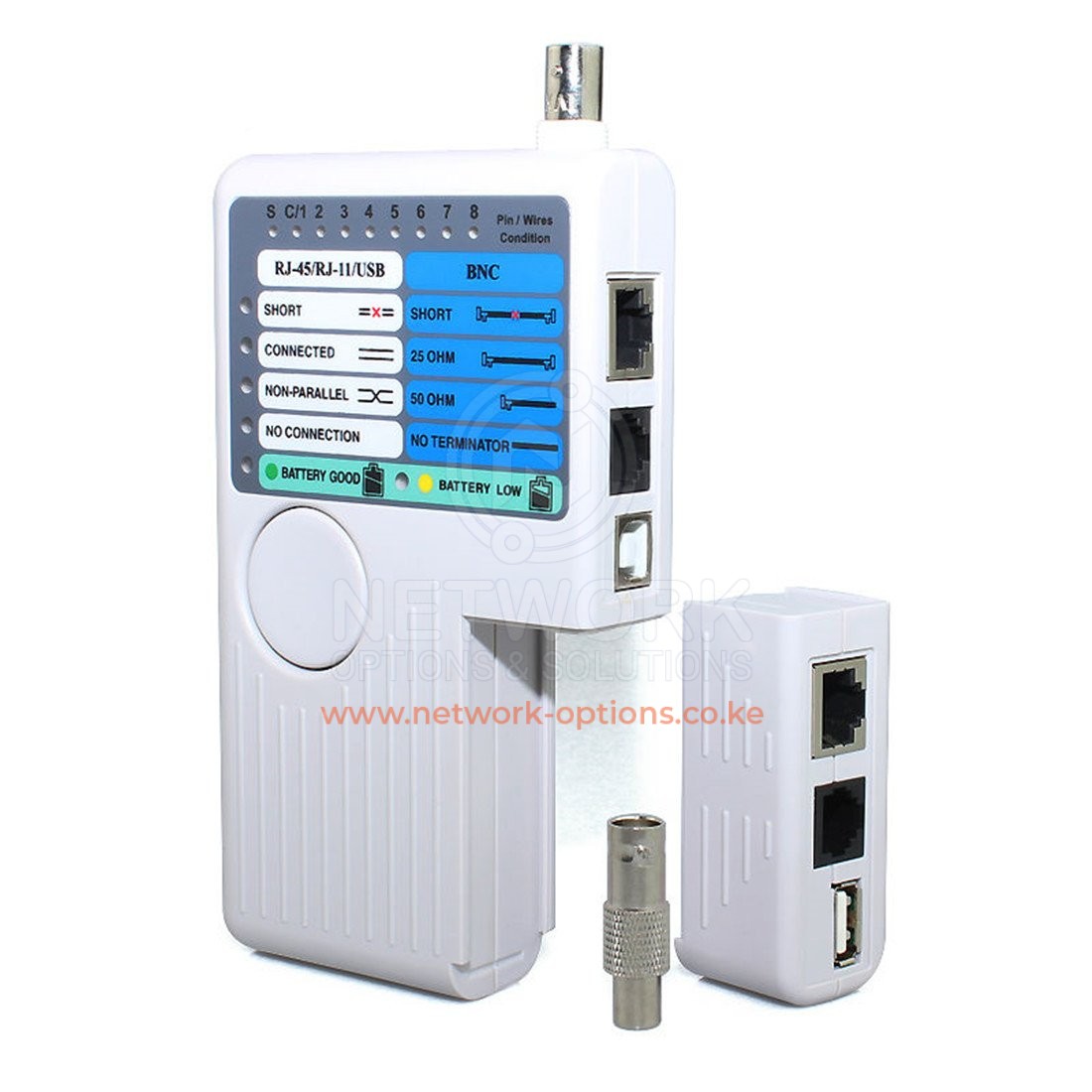

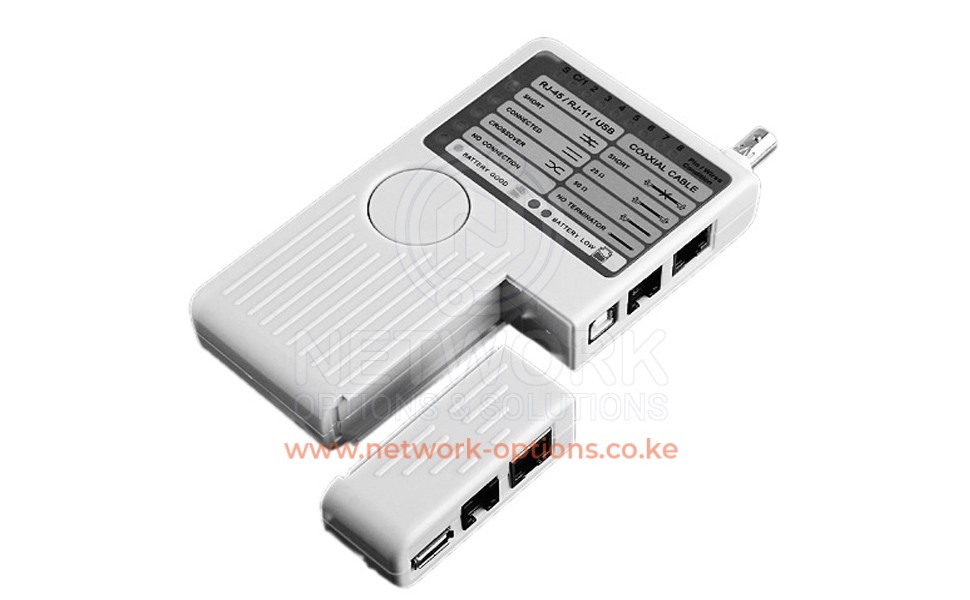

Network Cable Tester Remote RJ11 RJ45 USB BNC LAN Cat.5 Cat.6 Phone Cable Tester Meter

Remote Cable Tester is a 4-1 tester with the following features

• Tests 4 types of cables: RJ-45, RJ-11, USB and BNC. Tests installed wiring or patch cables.
• Tests shielded (STP) or unshielded (UTP) LAN cables. Tests shields in USB cables.
• Can test from 2 remote points. Beeper provides audible annunciation of test results.
• Remote unit stores in main unit. BNC terminator 25/50 Ohm indications.
• Straight or crossover indications. LEDs indicate connections and faults of wire and pins.
• RJ-11/RJ-45 are equipped with 50u gold plating. 300 feet test distance (RJ-45/RJ-11/BNC).
• Ergonomic portable handheld design. Powered by a 9V Alkaline battery. (Not included)
• Convenient battery access. Low battery indicator.
• Simple one button test. Fast speed testing.
• With a soft leather bag for carrying. High quality warranted.

What’s in the box

• 1 * 4-in-1 Network Cable Tester
• 1 * Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
• 1 * BNC Remote Jack
• 1 * Carrying Bag
• 1 * Instruction Manual
