Ubiquiti airCube airMAX ISP Home Wi-Fi Access Point ACB-ISP

The Ubiquiti airCube airMAX ISP Home Wi-Fi Access Point ACB-ISP is a Wi-Fi access point for use in your residential customer deployments. The Ubiquiti airCube AC features 4 x 10/100 Fast Ethernet Ports, 24V PoE Passthrough for airMAX CPE and 802.11n, 2×2 MIMO Technology. The airCube’s attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.

Ubiquiti airCube airMAX AC Features

• 4 x 10/100 Fast Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• 802.11n, 2×2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Powered by 24V Passive PoE or 2A Micro USB Adapter (Not Included)

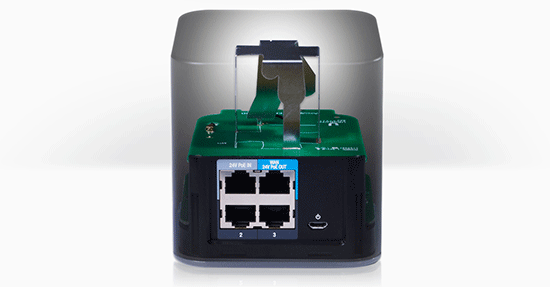

Sleek Design with Super Antenna
The innovative antenna provides wide-area coverage, and the airCube’s elegant design allows you to place it anywhere.

Deployment Example
The airMAX® AC BaseStation connects wirelessly to the outdoor CPE, which is wired to the airCube inside the home.

UNMS Support
Ubiquiti Network Management System (UNMS) simplifies remote network management.

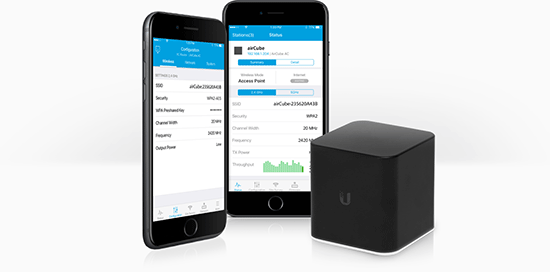

Mobile App for Quick Setup
Use the intuitive mobile app for iOS or Android to install and configure airCube.

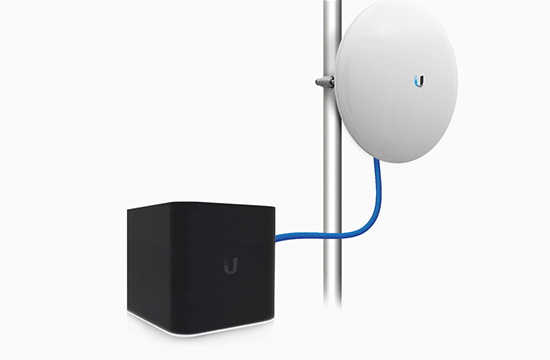

24V PoE Passthrough
The airCube offers convenient PoE passthrough to power a 24V airMAX CPE device, so you can use a single PoE adapter to power both devices. The airCube ISP requires 24V, 1A PoE input or a 2A Micro USB adapter (not included).

Ubiquiti airCube ISP Technical Specification

• Dimensions 87.80 x 89.50 x 89.25 mm (3.46 x 3.52 x 3.51″)
• Weight 215 g (7.58 oz)
• Power Supply 5V
• Power Method PoE 24V In on LAN Port 1 or
  • 2A Micro USB Adapter (Not Included)
• Supported Power Voltage 4.95-5.05V
• Max. Power Consumption 5W
• PoE Out Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
• LED status
  • Management Interface Wi-Fi / Ethernet
  • Networking Interface (4) 10/100 Fast Ethernet Ports
• Max. TX Power 22 dBm
• Antenna Gain 4 dBi
• Max. Speeds 300 Mbps
• Enclosure Characteristics Black Plastic
• ESD/EMP Protection ±24 kV RJ-45 Interface
• Operating Temperature -10 to 50° C (-14 to 122° F)
• Operating Humidity 5 to 95% Non-condensing
• Certifications CE, FCC, IC
