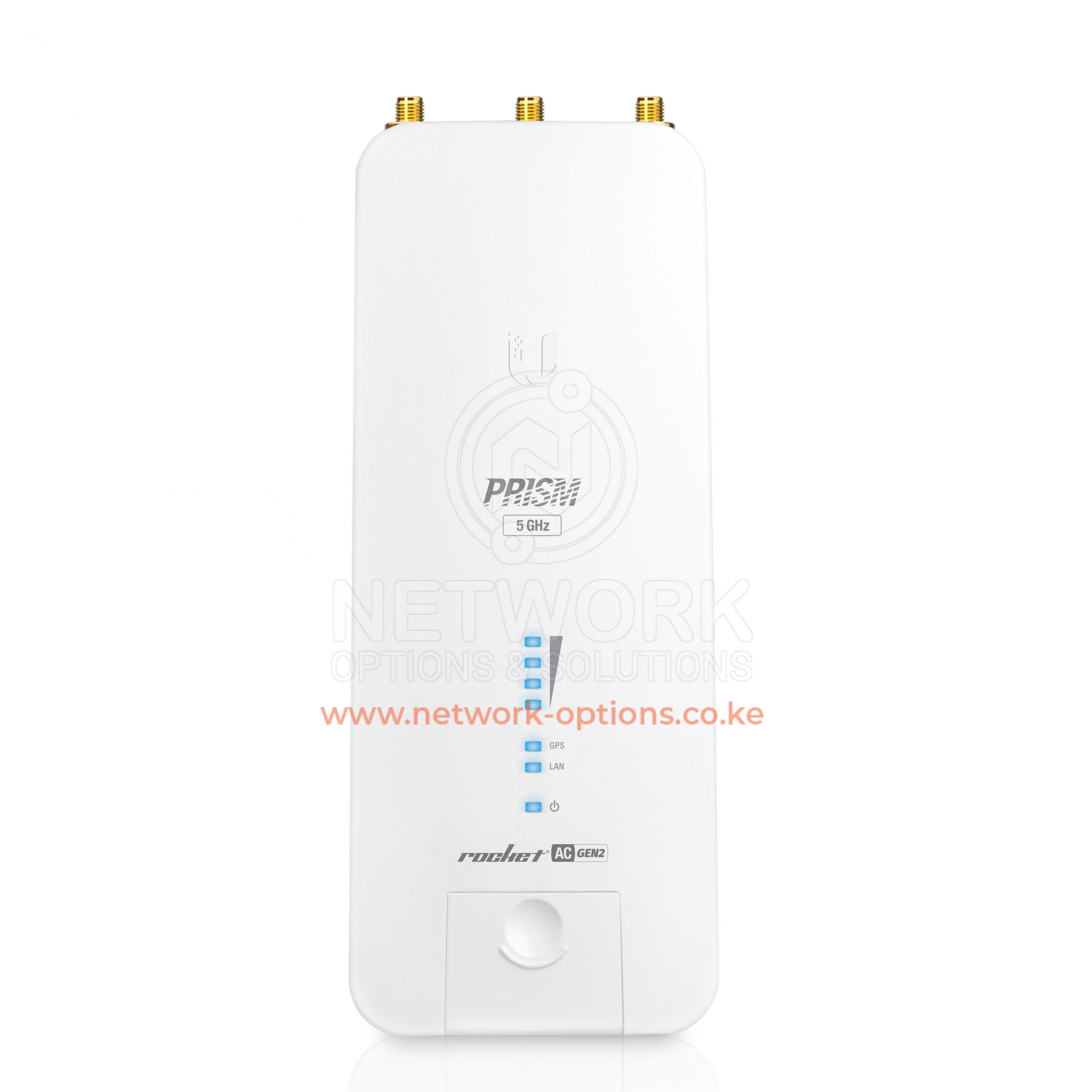

Ubiquiti rocket PRISM RP-5AC-Gen2

28,500.00 KSh +VAT

Rocket® Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas, now available at network options for Kshs. 27000 in Nairobi, Kenya.
Product Datasheet: Rocket® Prism AC Gen2 Datasheet
Product Quick Start Guide: Rocket® Prism AC Gen2 Quick Start Guide

Resources

RP-5AC-Gen2

Out of stock

Description

The Rocket5ac Prism (RP-5AC-Gen2) is designed to deliver maximum spectral efficiency and throughput.

Features
5 GHz Frequency Band With plenty of available spectrum, this unlicensed band works well for long‑distance links. The Rocket5ac Prism features full‑band 5 GHz coverage and maximizes output power for the US market, meeting strict OOBE requirements.
airView
Use the real‑time spectrum analyzer so you can identify noise signatures and design your wireless links to minimize noise interference.
High Performance
To take full advantage of its design and capabilities, deploy the Rocket5ac Prism for PtP or PtMP links in high RF noise environments.
airPrism Sector Antenna
You can mount three Rocket5ac Prism radios on the airPrism 5 GHz 3×30° HD Sector Antenna, model AP‑5AC‑90‑HD, for PtMP links. Each Rocket radio corresponds with a specific 30° beamwidth and independently transmits and receives.
EMI-Shielded Metal Housing
Helps protect the Rocket5ac Prism against electromagnetic interference.
Gigabit Ethernet
Delivers high throughput over its wired connection.
Passive Power over Ethernet (PoE)
24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Rocket ac. Use the included PoE Adapter or an optional PoE switch.
Plug and Play Integration
Every airMAX antenna has a built‑in Rocket mount, so no tools are needed to install the Rocket5ac Prism. (airMAX ac antennas are recommended for
optimal performance.)

Antenna Characteristics
Dimensions* 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″)
Weight 400 g (14.11 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
LEDs (4) Signal Strength, GPS*, LAN, Power
Channel Sizes PtP Mode (10/20/30/40/50/60/80 MHz) PtMP Mode (10/20/30/40 MHz)
Cross-Polarization Isolation 30 dB Min
RF Connectors (2) RP-SMA (Waterproof), (1) GPS* (Waterproof)
Memory 128 MB DDR2 SDRAM
Power Supply 24V, 1A Gigabit PoE Adapter (Included)
Power Methods Passive PoE (Pairs 4, 5+; 7, 8 Return)
Modes Access point, Station
Additional information
Weight 0.50 kg
Dimensions 93 × 45 × 235 cm
Brand

Ubiquiti

Color

White
