Ubiquiti NanoStation LocoM5 MIMO Wireless Bridge/Base Station

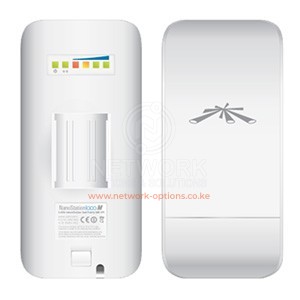

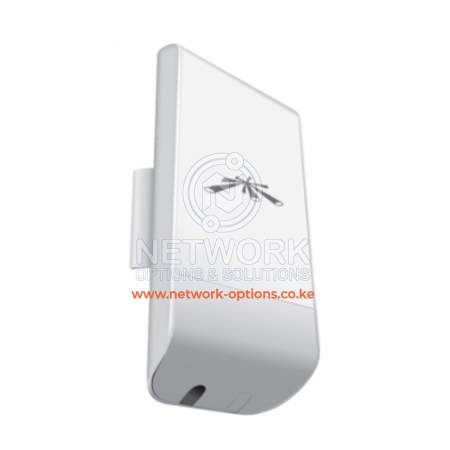

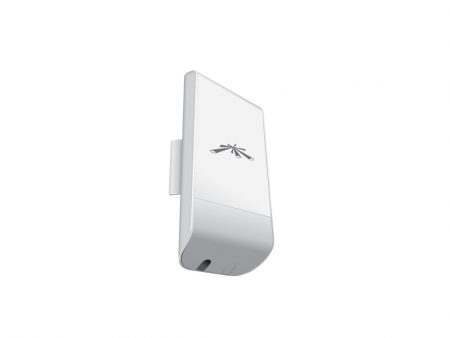

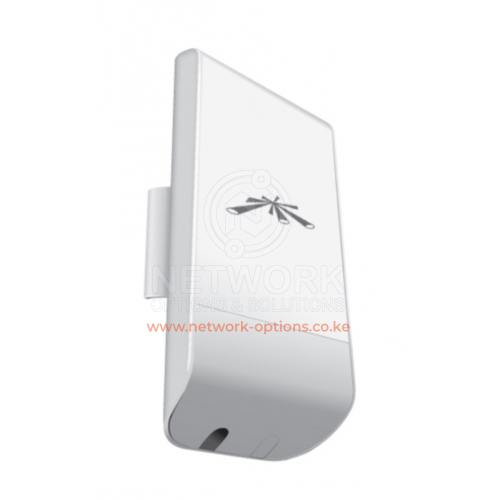

Uiquiti NanoStation Loco M5

The Ubiquiti NanoStation Loco M5 provides a secondary ethernet port with software enabled PoE output for seamless IP Video integration. The unit features a panel antenna and dual-polarity performance, which is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices.

Ubiquiti airMAX NanoStation Loco M5 Features
○ Connect two locations or points via wireless, with 5Ghz 802.11n
○ Throughput – 150+ Mbps
○ Range – 10+ km
○ Signal strength, which is reported by the on-board LED indicator
○ AP mode, client or WDS with Traffic shaping and QoS

Intelligent POE
Remote hardware reset circuitry of the Ubiquiti NanoStation Loco M5 allows for the device to be reset remotely from power supply location. In addition, any Ubiquiti NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti’s Instant 802.3af adapter.

Remote reset is an additional option. Ubiquiti NanoStation M comes standard as 24V without remote reset.

Specification of NanoStation Loco M5
SYSTEM INFORMATION
Processor Specs: Atheros MIPS 24KC, 400MHz
Memory Information: 32MB SDRAM, 8MB Flash
Networking Interface: (1) 10/100 Ethernet Port

REGULATORY/COMPLIANCE INFORMATION
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: YES

PHYSICAL/ELECTRICAL/ENVIRONMENTAL
Dimensions (mm): 163 x 31 x 80
Weight: 0.18kg
Gain: 13 dBi
Polarization: Dual Linear
Enclosure Characteristics: Outdoor UV Stabalized Plastic
Mounting Kit: Pole Mounting Kit Included
Max Power Consumption: 5.5 Watts
Power Supply PoE: 24V, 0.5A
Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature: -30C to 75C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
